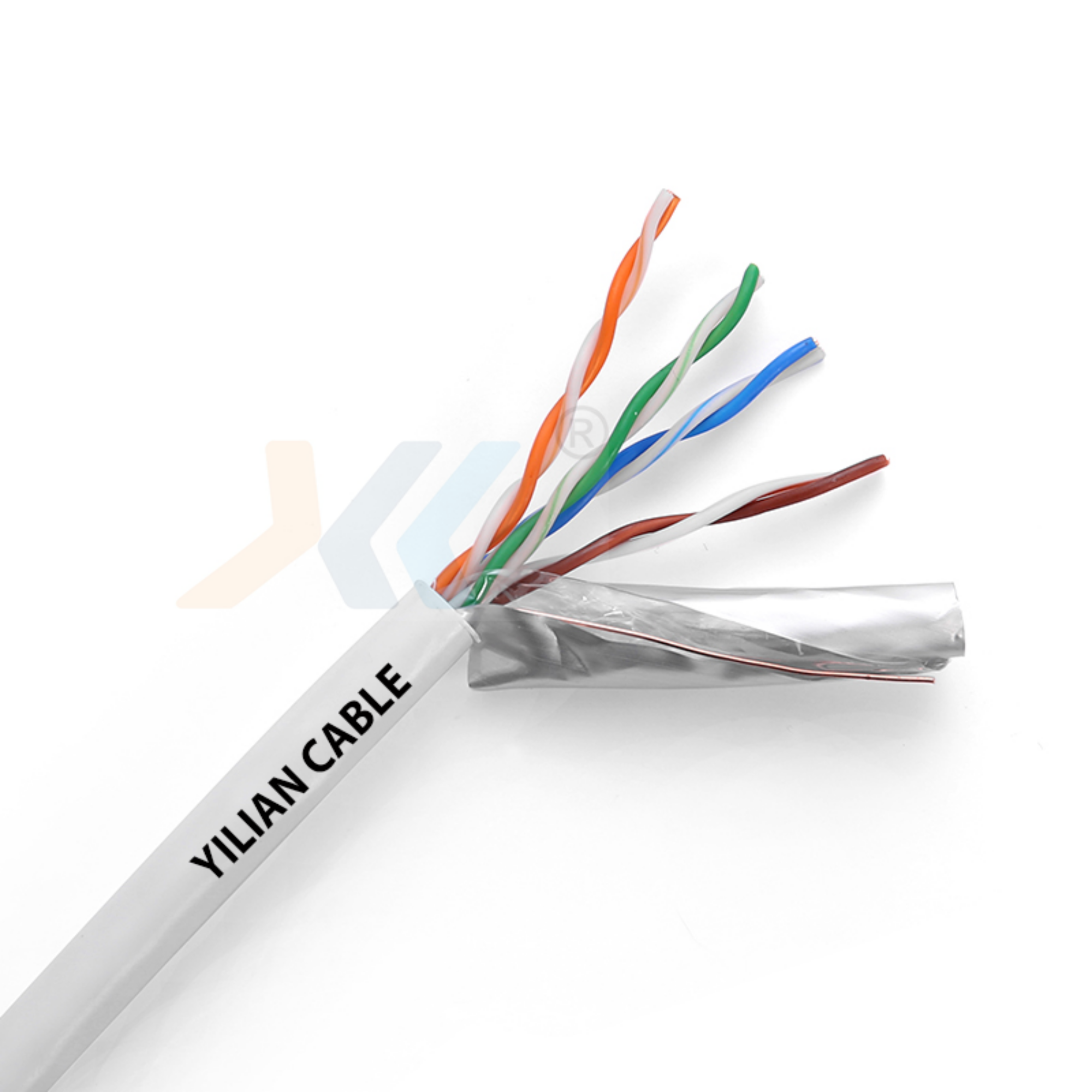

CAT5E Network Cables, China CAT5E Network Cables Manufacturers, Suppliers, Factory

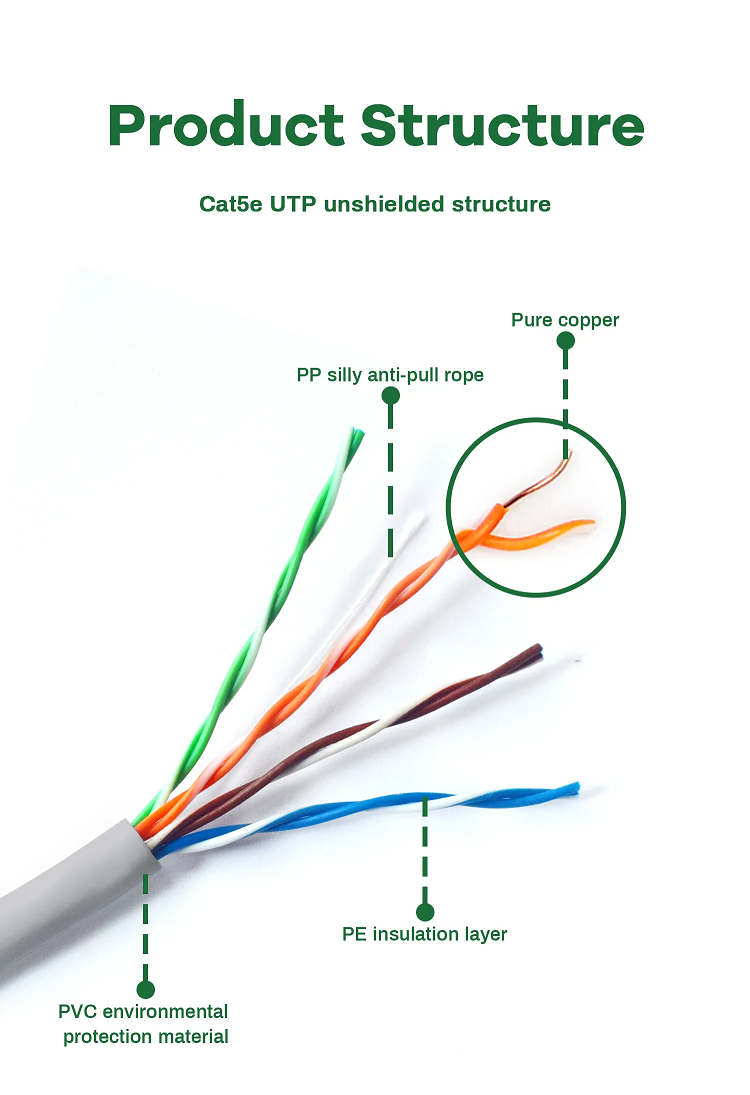

Product model	CAT5E LAN CABLE
Conductor size	24AWG 420.5mm(0.35mm,0.4mm,0.45mm,0.48mm,0.51mm)
Conductor material	BC/CCA
Shield	UTP/FTP/SFTP
Insulation material	PE, HDPE
Number of pairs	4 pairs Orange/white orange Blue/white blue Green/white green Brown/white brown
Jacket material	PVC, LSZH PVC
Jacket thickness	≥0.5mm
Frequency	100Mhz
Working temperature	-20℃to +70℃
Length	100m,305m or customized
PVC jacket color	OEM
Print words	OEM
Application	lt can be used to connect various network devices and data transmission communication in network system, such as the transmission of voice and image. lt is widely used in 5G network, intelligent building, intelligent home and other integrated wiring systems.

What is CAT5E NETWORK CABLE?

CAT5e (Category 5 Enhanced) is an improved version of the original CAT5 network cable, designed for higher performance in Ethernet networking. Here are some key features and specifications of CAT5e cables:

Speed and Bandwidth: CAT5e cables support data rates of up to 1 Gbps (Gigabit per second) over distances of up to 100 meters. They operate at a frequency of up to 100 MHz, allowing for adequate bandwidth for many applications.
Crosstalk Reduction: CAT5e cables have enhanced specifications to reduce crosstalk (interference between wire pairs) and system noise. This improvement helps maintain better signal quality and reliability during data transmission.
Distance: Similar to CAT5 cables, CAT5e can maintain optimal performance over a maximum distance of 100 meters for Gigabit Ethernet connections.
Connectors: CAT5e cables use RJ45 connectors, which are standard for Ethernet connections and compatible with most networking equipment, such as routers, switches, and computers.
Applications: CAT5e cables are widely used in home networks, office environments, and data centers for applications that require high-speed internet access, video streaming, and online gaming.
Backward Compatibility: CAT5e cables are backward compatible with CAT5 and support all applications compatible with CAT5 cabling.

In summary, CAT5e network cables provide enhanced performance for networking applications while remaining cost-effective and suitable for a wide range of environments. They are a popular choice for Gigabit Ethernet networking due to their ability to deliver reliable and fast connections.
